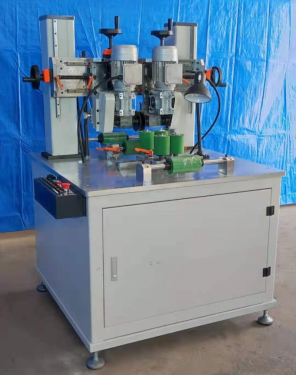

Knurling and Strip Feeding Machine
Features:
1,Total discs can be moved up and down automatically , which makes it faster when change different profiles.
2,With insulation strips insertion function.
3,Electric commponents and main spare parts are international top brands , such as Schneider ,Italy CAKMOTOR, Mitsubishi inverter are used.
4,Bottom roller is in two parts which can be adjusted seperately ;which is suitable for the special profiles with non-flat plane .
Technical data:
|
Model |
GKC-01 |
|
Voltage |
380V/50Hz (Custom) |
|
Total power |
1.35Kw |
|
Diameter of knurling disc |
80mm |
|
Knurling adjust range |
W：220 mm |
|
H：220 mm |
|
|
Air pressure |
0.6-0.8Mpa |
|
Knurling speed |
0-100m/Min |
|
Max secition size |
220x220mm(WxH) (Custom) |
|
Machine size |
1100x1100x1580mm(LxWxH) |
|
Machine weight |
800Kg |
KCJ-01-G Knurling and Strip Feeding Machine
